The Great Divide Part 2

What I thought was a somewhat trivial blog post yesterday became far more interesting after receiving some member input from the Yahoo groups. Two things came to light:

  1. The circle divide can be used to create citrus slices
  2. I could have made the task a lot easier by using the Layout>Array function! (Duh me!)

So, here’s Part 2… no video, but if you watched yesterday’s video, just stop after you create the first wedge and rotate it manually until it’s in a vertical position like this:

Next, go to Layout>Array and select On Arc With Rotation from the drop down menu on the Smart Bar. Set your Start and End at 0 and 360. Don’t worry about the next setting (Arc Radius) quite yet. Just start clicking on Total and then you can go back and increase or decrease Arc Radius so that the wedges are spaced exactly the way you want. When you’re happy with the look, click on Close and then delete the original wedge in the middle:

Now, let’s make it look more like an orange slice. Select the wedges and color them orange. Then go to Transform>Round Corner and play with the setting until you achieve the amount of roundness on the corners that will make it look more like a real orange:

Lastly, just add a yellow circle to the back and another orange circle to the back. If you’re not familiar with the ordering hot keys: Ctrl-L moves an image back one position and Ctrl-B moves it to the very back; Ctrl-U moves an image forward one position and Ctrl-F moves it to the very front. And here’s the final product:

The Great Divide

A while back, at one of the many cutter Yahoo groups I scan and read, a member asked how to divide a circle into 7 equal segments (or maybe it was 5?) in “this other cutting software program.” The response to her question was that there wasn’t an easy to do that and just eye-balling it would be the only way. That immediately made me think about whether there was an easy way to do it in KNK Studio… basicially, how do you create the following image:

Well, being a fan of anything mathematical, I had to see if I could figure it out and within a few minutes I had one method… then after thinking about it for awhile, I came up with an easier method. In today’s video I show how to create a circle segment that would represent 1/7 of a whole circle and also how to create the other six and align them to form the above look. Of course, that might not be necessary if you were cutting them from individual colors like the above figure suggests. On the other hand, just in case you do need them properly rotated and arranged, I show that in the video. I failed to show how to recolor each segment, but I’m guessing you can figure out that part on your own. 🙂

Dividing a Circle into Segments

I Love Halloween! Do You?

Today’s free video is a gift to all of you who enjoy decorating for Halloween. I show in this video how to design your own spider web. It’s amazingly easy to do and this method offers total freedom in how uniform or how crazy you want your web to look! I even have an “oops moment” in the video that I decided to just leave in, because it’s something that may happen to you during the design and I wanted you to see how to fix it. 🙂

Designing Your Own Spider Web

As always, let me know if you have any questions!

Creating Cutting Files from Your Favorite Stamps

Kelly D emailed me about tracing stamps so that you could cut out the shapes and then stamp right on the cutouts. She sells Close To My Heart stamps and wanted some tips. Fortunately, I’ve participated in a few CTMH hostess clubs and already had a number of their stamp sets. So, I pulled them out and selected one of my favorites: Flutter.

The nice thing about CTMH is that not only are they clear stamps, but they come with a backing sheet that has crisp black images which will scan into your computer beautifully. I removed the stamps and placed the backing sheet onto the scanner, picked a resolution of 300 and scanned it in black and white mode. The resulting image looked like this:

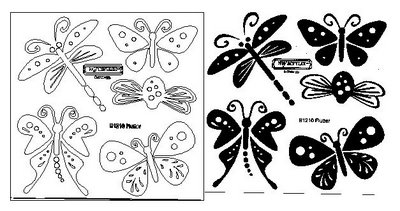

Next, in KNK Studio, I imported this scan and was careful to just left click once on the Sign Blank, rather than drag the cursor to the desired size. This will ensure the original sizes of the stamps are maintained. I then used the standard Accuscan method to auto-trace the image. I picked Logo-Long Lines and Curves as the default settings. After scanning and moving the vectorized image to the left of the original, the results were:

I then deleted the original, used Arrange>Break Path on the tracing, and began to delete the extra detail not needed. What I wanted were just the overall exterior details of these insects:

Then I selected my images and went to Transform>Outline. I used a thickness of 0.08, resulting in the blue outlines below. I kept the originals just in case I wanted to create a different thickness after test cutting the shapes.
Also, you’ll see the tiny little interiors on three of the insects. I kept them on the two larger insects but deleted them on the butterfly. Again, you just use Arrange>Break Path to separate the detail and then you can go in and delete those little paths.
The next step was to test cut the blue lines on white cardstock and I was really happy with the results. I placed the white cutouts on a black sheet so that I could clearly see them. Then, using clear acrylic blocks with these clear stamps, it’s actually very easy to see exactly where the stamped image will be placed so that centering isn’t a problem at all… even for someone who is stamp-challenged like myself. 😛

If any of you already own the CTMH Flutter stamp set, contact me at and I will provide you the .knk file I created.
